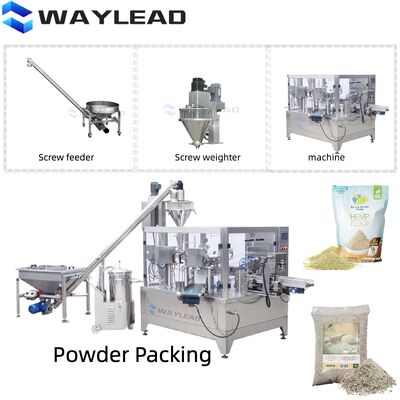

Powder Packaging Machine Fine Powder Auger Doypack Packing Equipment
| MOQ: | 1 |
| ราคา: | Negotiations |
| การบรรจุแบบมาตรฐาน: | บรรจุภัณฑ์มาตรฐานสากลสำหรับการขนส่ง |
| ระยะเวลาการจัดส่ง: | 30 วัน |
| วิธีการชำระเงิน: | L/C,T/T,เวสเทิร์นยูเนี่ยน |
| ความสามารถในการจัดหา: | 300 ชุดต่อปี |
ข้อมูลรายละเอียด
สถานที่กำเนิด
เซี่ยงไฮ้
ชื่อแบรนด์
Waylead
ได้รับการรับรอง
/
หมายเลขรุ่น
WG-250
ความเร็วในการบรรจุ:
≦70 ถุง/นาที
ขนาดกระเป๋า:
ความยาว: ≦ 400 มม. กว้าง: 130-260 มม
วัสดุฟิล์ม:
ถุงแบน ถุงตั้ง ถุงซิป ถุงฟิล์มคอมโพสิต และประเภทอื่นๆ
แหล่งจ่ายไฟ:
380V
ปริมาณการใช้อากาศ:
5-7 กก./ซม.2; 0.4 ลบ.ม./นาที
ประเภทพลังงาน:
ไฟฟ้า
การใช้พลังงาน:
8 กิโลวัตต์
วัสดุ:
เหล็กไร้สนิม
ช่วงบรรจุภัณฑ์:
เม็ดผงของเหลว
คําอธิบายสินค้า
This powder packaging machine is specially developed for fine powder materials such as flour, milk powder, spice powder and chemical powder. It adopts a fully enclosed auger metering structure, which effectively avoids powder flying and material leakage during the packaging process, keeping the production environment clean. The metering system supports stepless adjustment, and the filling accuracy can be adjusted dynamically according to different powder densities. The machine is equipped with anti-static and dust-proof design, which reduces the safety risk caused by powder accumulation. The contact parts with materials can be quickly disassembled without tools, making the cleaning and material changing process more convenient. It is widely used in food, pharmaceutical and chemical industries. We provide customized services for different powder characteristics to ensure the equipment meets the actual production demands
Technical Specifications
| Model | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700*1140*1470 mm | 1850*1250*1520 mm | 2100*1500*1520 mm |
Application Range
Block Items
Candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessitiesParticles
MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materialsPowders
Condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materialsLiquids
Rice wine, soy sauce, rice vinegar, juice, beverages, detergentsSauces
Tomato sauce, peanut butter, jam, chili sauce, bean pasteOther Materials
Various other products suitable for bagging Advantage Features
- Designed in accordance with GMP standards and CE certified
- Full servo control system for reliable, fast, and precise operation
- Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
- Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
Complete Packaging Machine Range
Shanghai Waylead Intelligent Technology Co.,Ltd. is specialized in turn-key solutions for packaging processing projects and fruit/vegetable processing lines. The company focuses on packaging equipment, robot applications, fruit and vegetable processing equipment, etc., and is committed to the fruit and vegetable processing industry, baking industry, snack food industry, freeze-drying industry, and powder industry. sauce industry, hardware chemical industry and other one-stop professional services.
Our comprehensive packaging solutions include VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, providing quality products at factory price. Welcome to visit us!
What quality guarantee or warranty do you provide?
We provide high-quality machines with a 3-year warranty and lifetime technical support.
When can I get the machine after payment?
Delivery time depends on the specific machine model ordered.
How do you provide technical support?
24/7 support via phone, email, or messaging platforms; installation guides and videos; overseas engineering services available.
How does your after-sales service work?
Machines are pre-adjusted before shipment with free training available. Lifetime technical support provided via multiple communication channels.
How about spare parts?
We provide a comprehensive spare parts list for reference.
Can you help with custom design requirements?
Customized design available with our experienced mechanical engineers.
Can you help analyze and design machines for new product samples?
Yes, our technical department can analyze, design, and test new products you provide.
How do I start an order?
30% deposit after signing contract, production arrangement, pre-shipment testing and inspection, balance payment before shipment.
Can you send product catalog and price list?
Electronic catalog available. Please consult us for specific product pricing.
Can I visit your factory?
Yes, welcome to visit our factory at Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
